Control up to 24 Rite-Hite Direct Drive HVLS Fans from a single location
The Fan-Commander® 2.0 is the standard control station for Rite-Hite Direct Drive Fans. The wireless touch screen control station allows for operation of up to 24 Rite-Hite direct drive high volume, low speed (HVLS) fans from a central location. Divided into four zones, the Fan-Commander 2.0 allows for turning fans on/off, adjusting the fans’ speeds, and setting up schedules for independent fans or an entire zone. Standard Ethernet connectivity allows remote control access, from PC or mobile app
Control
- Wireless communication and diagnostic monitoring between controller and fans
- Four zones allow user to control fan speeds and usages simultaneously or independently
- Adjust fan speed in 1% increments between 20% and 100%
- Mesh network – up to 400′ between fans
- Password protection prevents unauthorized adjustment of settings
- Schedule fans to operate only when needed to save energy
- Optional sensor controls fan operation based on temperature within a facility
- Dimensions: 10.5″W x 8.25″H x 3.6″D. Screen size is 7″ (measured diagonally)
- IP 40 Rated
- Internal battery retains custom settings in the event of a power failure
System Integration
- Optional Input/Output Module allows integration to automation system
- BACnet capable

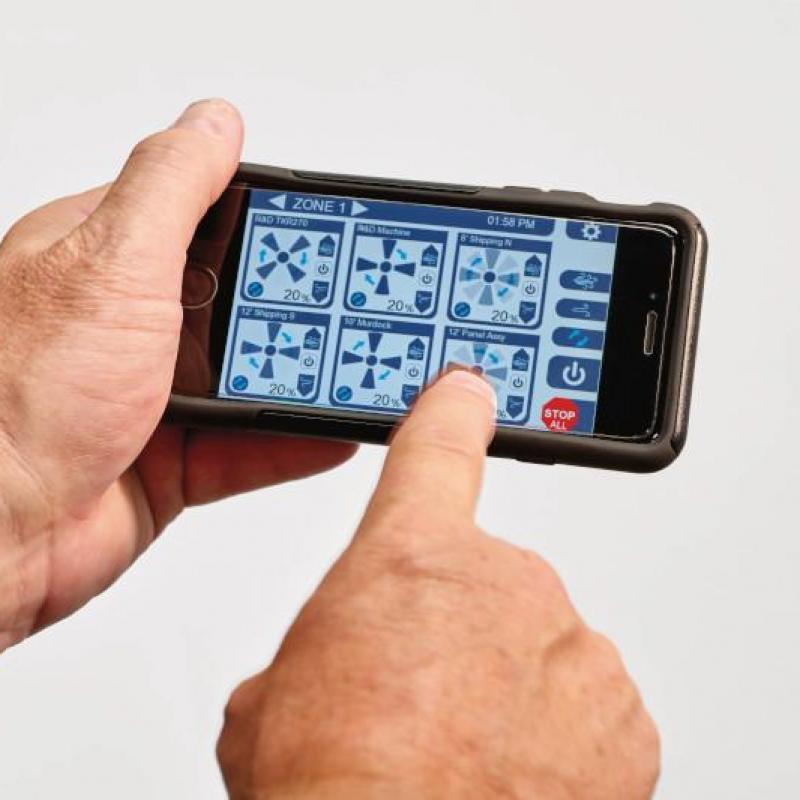

- Standard Ethernet connectivity allows remote control access from PC or mobile app
